First-principle thermal modeling of hybrid supercapacitors under galvanostatic cycling

Abstract

This study presents a theoretical framework developed from first principles for predicting the spatiotemporal thermal behavior of hybrid pseudocapacitors under galvanostatic cycling. It accounts for irreversible and reversible heat generation in the electrolyte and in the electrodes due to Joule heating, electric double layer (EDL) formation, and redox reactions. Detailed numerical simulations were performed to investigate the different local heat generation rates and the temperature as functions of time and cycling current. Numerical predictions showed good qualitative agreement with the limited experimental data available in the literature. Such numerical simulations can be used to physically interpret experimental measurements. Indeed, the present results suggest that a distinctive endothermic peak observed in the experimental heat generation rate resulted from cation starvation in the electrolyte reducing the faradaic current density. In addition, heating due to EDL formation significantly affected the local temperature and must be accounted for. The thermal model and the present results will help define safe modes of operation and develop thermal management strategies for pseudocapacitors.

Highlights

• New thermal model for hybrid pseudocapacitors was rigorously derived from first principles.
• The model accounted simultaneously for faradaic reactions and EDL formation.
• EDL formation was found to significantly influence the thermal behavior.
• Simulations qualitatively reproduced experimentally measured heat generation rates.

Analysis

Schematic and Assumptions

Assumptions:

1. The following heterogeneous redox reaction occurred within the Stern layer near the pseudocapacitive electrode by

2. Bulk motion of the electrolyte was negligible.
3. Transport of the intercalated cations in the pseudocapacitive electrode was treated as a diffusion process.
4. No phase transitions occurred in the pseudocapacitive material.
5. The material properties of the electrodes and electrolyte were constant.
6. The Stern layer thickness H was equal to the largest effective ion radius so that H = max(a_i/2).
7. Non-electrostatic ion adsorption was negligible.
8. The Dufour energy flux, i.e., the energy flux due to gradients of electrochemical potential and/or pressure, was negligible.
9. The temperature was assumed to be uniform within the narrow Stern layers at all times.
10. The cell was thermally insulated.

Governing equations

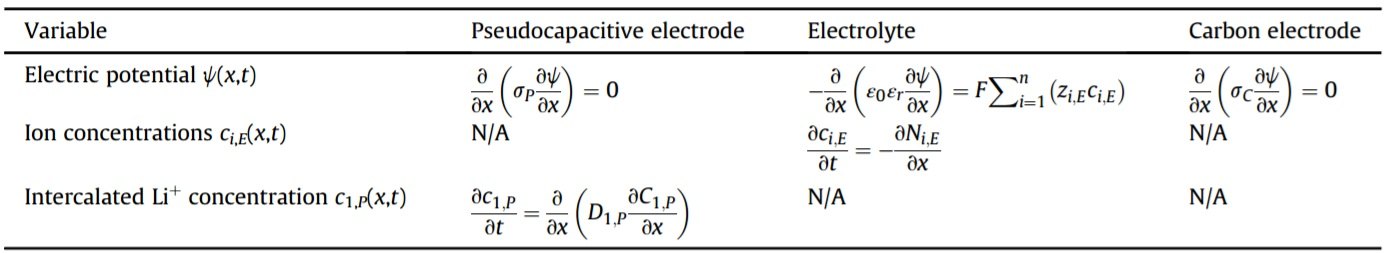

One-dimensional governing equations for electric potential ψ(x,t), ion concentrations c_i,E(x,t), and reduced Li+ concentration c_1,P(x,t) in the pseudocapacitive and carbon electrodes and in the electrolyte:

The flux N_i,E of ions in the diffuse layer of the electrolyte is expressed, in 1D, as

Conservation of energy shows that the local temperature T(r,t) is governed by the heat diffusion equation expressed as

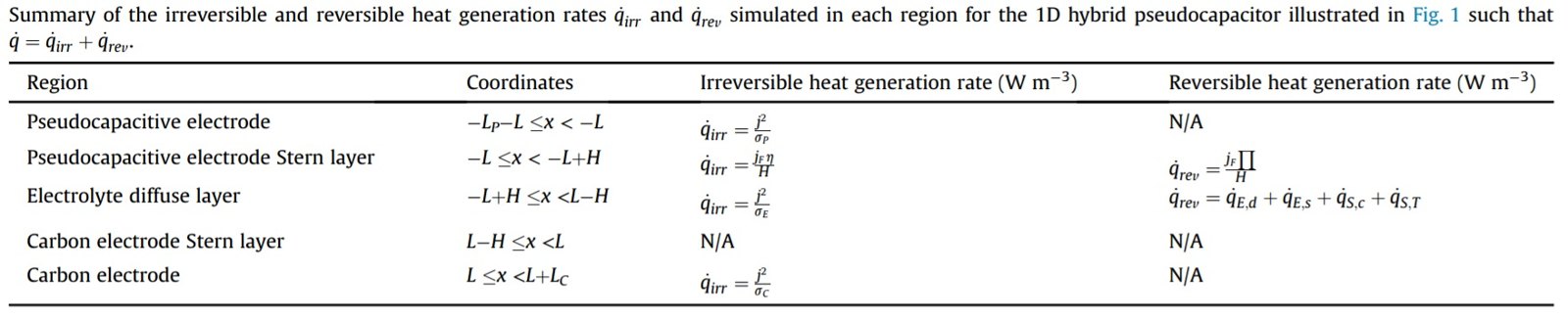

The electrical heat generation rate reduces to irreversible Joule heating expressed as

The heat of mixing due to the 1D electron flux and to the 1D flux of intercalated could potentially produce a reversible heat generation rate in the electrode expressed as

The reversible diffusion and steric contributions are expressed as

The heat of mixing comprises two terms expressed as

The heat generation rate due to the faradaic reaction is given by

Then, heat generation rate due to the faradaic reaction can be divided into one irreversible and one reversible contribution with the remarkably simple expressions

Results

Numerically predicted total heat generation rates (a) Q̇_P of the pseudocapacitive electrode half-cell and (b) Q"̇_C of the carbon electrode half-cell for 0 V ≤ ψ_s ≤ 0.45 V as well as experimentally measured total heat generation rates minus Joule heating (c) Q̇_C-Q̇_j,irr,P of the pseudocapacitive electrode half-cell and (d) of the carbon electrode half-cell for a hybrid pseudocapacitor cycled galvanostatically over the potential window 0 V ≤ ψ_s ≤ 1.0 V [1] as functions of dimensionless time t/t_c for different values of j_s.

Conclusions

The present study developed the first thermal model based on first principles for the local irreversible and reversible heat generation rates and temperature of EDLCs with multiple ion species and/or asymmetric electrolytes. Detailed numerical simulations were performed for different binary and asymmetric electrolytes based on the properties of aqueous H₂SO₄. First, the irreversible heat generation rate q̇_irr was uniform across the electrolyte and equal to q̇_irr =j_s²/σ_∞. It decreased with increasing valency |z_i| or diffusion coefficient D_i of one or both ion species due to the resulting increase in electrical conductivity of the electrolyte. However, q̇_irr was independent of the ion diameter a_i. The reversible heat generation rate q̇_irr near each electrode was governed by the properties of the counterion. It increased with increasing valency |z_i| and decreasing ion diameter a_i but was independent of diffusion coefficient D_i. As a result, electrolytes with asymmetric valency z_i or ion diameter a_i featured spatially asymmetric heat generation rates and larger temperature oscillations near the electrode with the larger |z_i| or smaller ai of the counterion. The results demonstrate that thermal models must account for electrolyte asymmetry in order to accurately predict the local heat generation rates and temperature. This study suggests that to reduce the overall heat generation in EDLCs, electrolytes should feature large bulk concentrations c_i,∞ and at least one ion species with large diffusion coefficient. In addition, electrolytes chosen to yield large capacitance via ions with large valency |z_i| and/or small diameter a_i are likely to feature large reversible heat generation rates generated near the electrode surfaces.

References

[1] J. Schiffer, D. Linzen, D.U. Sauer, Journal of Power Sources 160 (2006) 765-772.
[2] H. Gualous, H. Louahlia, R. Gallay, IEEE Transactions on Power Electronics 26 (11) (2006) 3402-3409.

Publications

1. A.L. d'Entremont and L. Pilon, 2016. First-Principles Thermal Modeling of Hybrid Pseudocapacitors under Galvanostatic Cycling, Journal of Power Sources, Vol. 335, pp. 172-188.DOIPDF
